12LED Strada

►Ideal for industrial and outdoor lightning
►Lenses with various angles available
►Optional thermoresistor for protection and/or measurement (dimming)
►Optional TVS protection

Categories: , Tags: ,


Description

Benefits:

> Ideal for industrial and outdoor lightning

> Luminous flux range from 2000 lm – 8300 lm

> Efficacy of the module up to 193 lm/W

> Small colour tolerance (MacAdam 3)

> Small luminous flux tolerances

> Colour temperatures from 2700K to 6500K

> Lenses with various angles available

> Optional thermoresistor for protection and/or measurement (dimming)

> Optional TVS protection

> Simple installation (e.g. screws)

> Long life-time: >50,000 hours

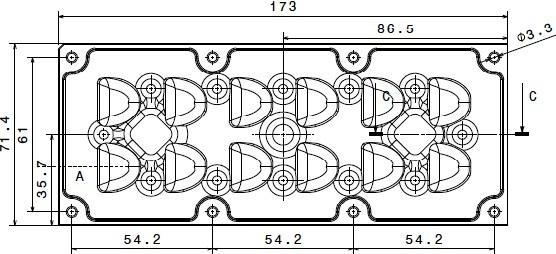

12LED Strada module with LEDs of the latest generation from the top chip producers in the world – CREE, SAMSUNG and OSRAM achieve maximum efficiency values. The modules have been specifically developed on high thermoconductive aluminium plate with extra thick copper. The product range covers colour temperatures Warm White 3000,Neutral White 4000, Cold White 5000K and 6000K and module efficiency of up to 193 lm/W. The module is driven by constant current. The design is improved for simple installation. The module covers three types of LEDs for most applications. This LED engine is compatible with LEDIL lenses family Strada IP – with the different angles to achieve all types of distortions. There is an optional thermistor for temperature control, TVS for extra overvoltage protection, WAGO connectors for easy wiring or option with soldered cables.

Technical Specification:

12LED Strada Photo metric code Typ. luminous flux at tp = 25  °C Typ. Voltage at tp = 25  °C Typ. power consumption at tp = 25  °C Luminous efficacy module at tp = 25  °C Colour rendering index CRI
 Cree XT-E
High Efficiency at 350mA
740 2070 Lm 34.2 V 11.97 W 173 Lm/W >70
750,757,765 2170 Lm 34.2 V 11.97 W 182 Lm/W >70
Cree XT-E
High Output at 900 mA
740 4500 Lm 36.2 V 32.6 W 138 Lm/W >70
750,757,765 4760 Lm 36.2 V 32.6 W 146 Lm/W >70
Samsung LH351B
High Efficiency at 350mA
740 2100 Lm 35.9 V 12.56 W 167 Lm/W >70
750,757,765 2230 Lm 35.9 V 12.56 W 177 Lm/W >70
Samsung LH351B
High Output at 900mA
740 4834 Lm 38.1 V 34.3 W 141 Lm/W >70
750,757,765 5136 Lm 38.1 V 34.3 W 150 Lm/W >70
Cree XP-L
High Efficiency at 350mA
740,750,760 2240 Lm 33 V 11.6 W 193 Lm/W >70
Cree XP-L
High Output at 1500mA
740,750,760 8253 Lm 35.6 V 53.4 W 155 Lm/W >70
