201

Description

Benefits:

•  Engineered with the finest Osram LED components
•  Fully contained power supply with no exposed wires
•  Cost-effective conventional light source replacement
•  Easy to install on arm pole retrofit
•  Produces no harmful UV rays
•  Contains no mercury or fluorocarbons
•  Proprietary heat sink module efficiently removes heat
•  Self-cleaning, long-lasting rugged design.
• LED luminaire 201 delivers highquality uniform illumination while maximizing lumen output. Far more energy efficient than halogen, incandescent and fluorescent lamps,model 201 is also more reliable and can save up to 85% in energy, replacement and maintenance costs annually. It is a classic looking road light fixture with high efficacy Osram LEDs, giving 9300Lm useful dispersed light. With it`s special Strada lenses the effective illuminated area from 10m height is 850 sqare meters (50x17m) with 11Lx.

  Model 201 has a build in termal protection for 65 degrees Celsius and when it reaches that point the output light is decremented by 50% with PWM giving the heatsink time to dissipate the heat.

•  Technical Specification:



  General Characteristics
  LED chip manufacturer	Osram
  Housing	Aluminium / powder coated steel
  Life of the LEDs to 70% lumen maintenance	70 000 – 100 000hr
  Operating temperature	-25 – +40 °C
  Ingress protection	IP 65
  Electrical Characteristics
  Wattage	130W
  Type of power supply	110/220 V AC/PFC
  Light characteristics
  Color rendering index	CRI ≥ 70
  Luminous flux	9300 lm
  Product Dimensions
  Width/length/height	610x330x100 mm
  Weight	10.4 kg

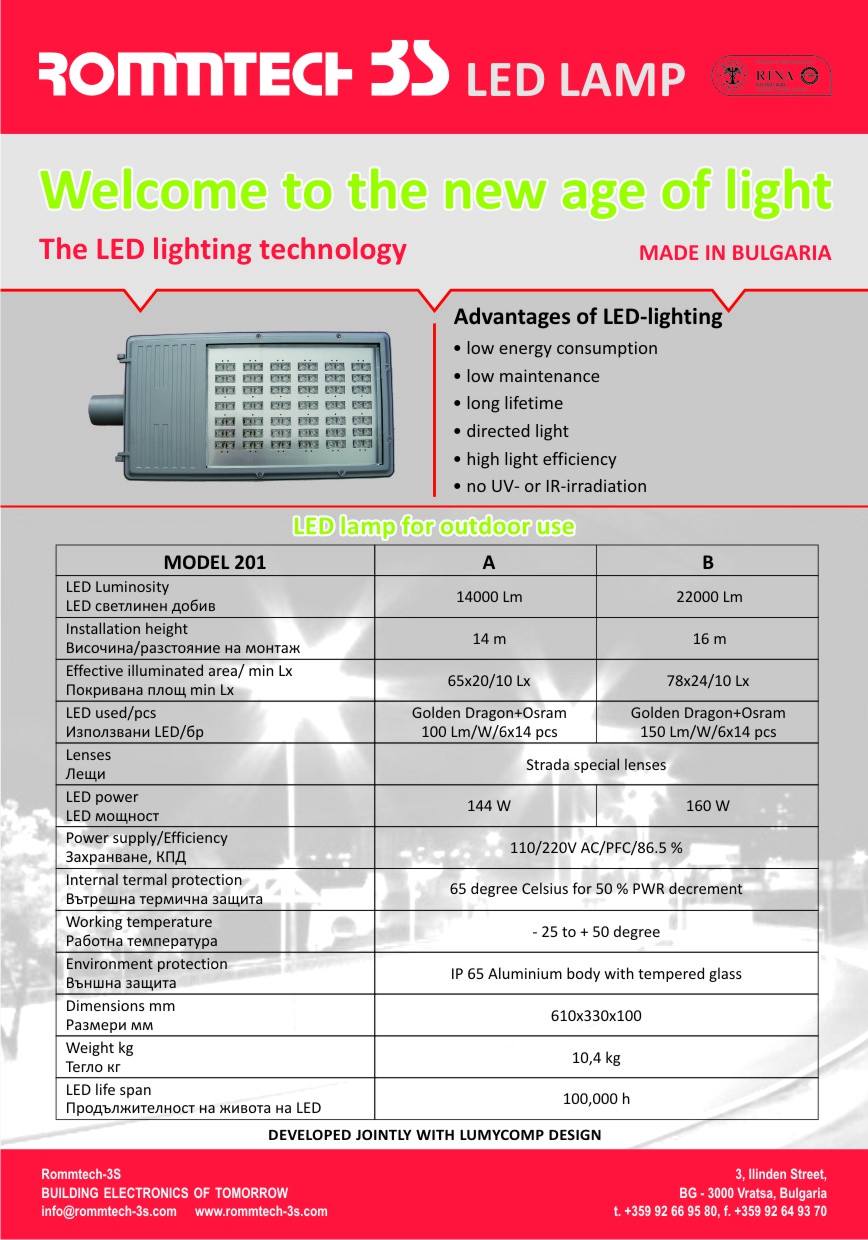

  Brochure
